Dassault Falcon 900

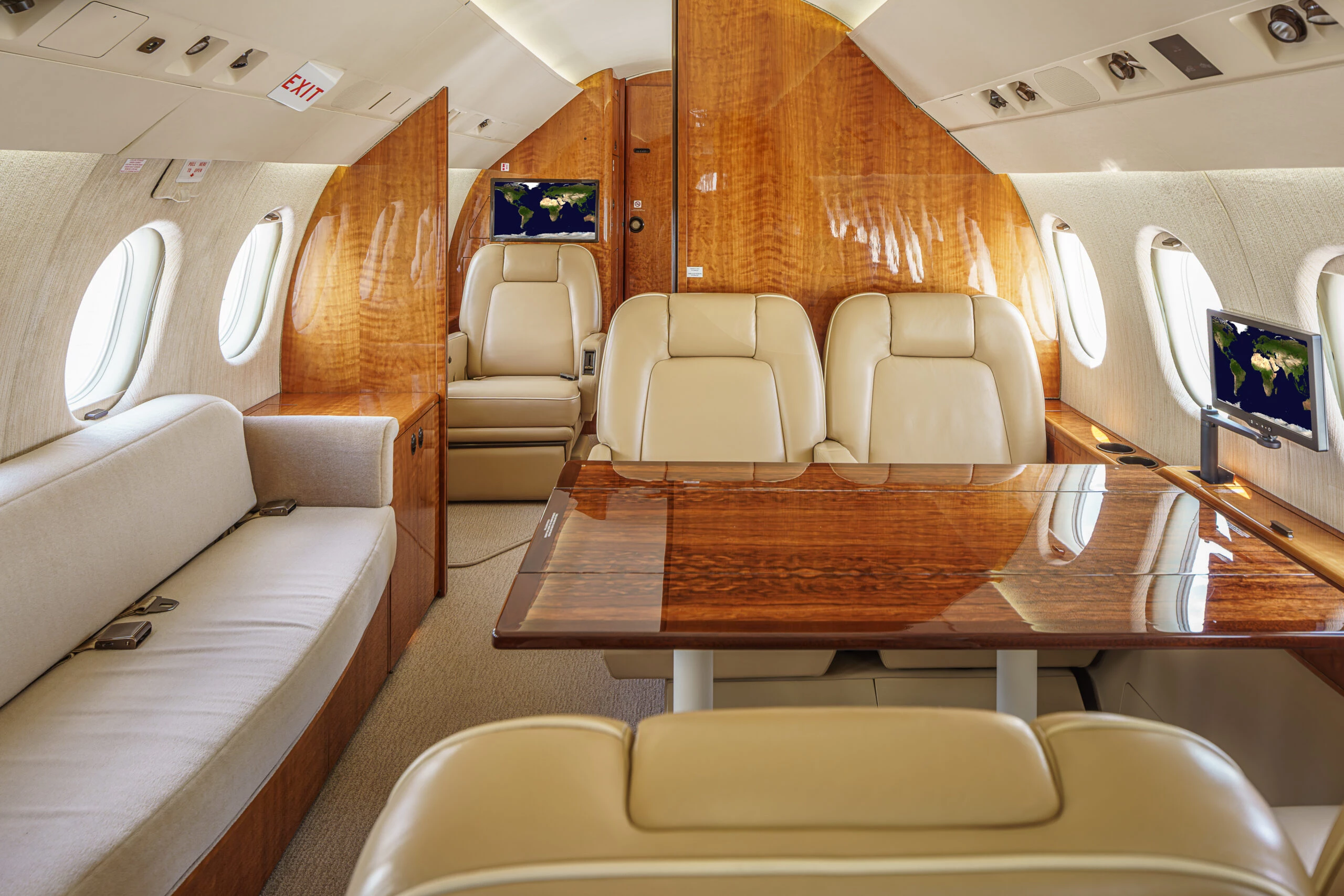

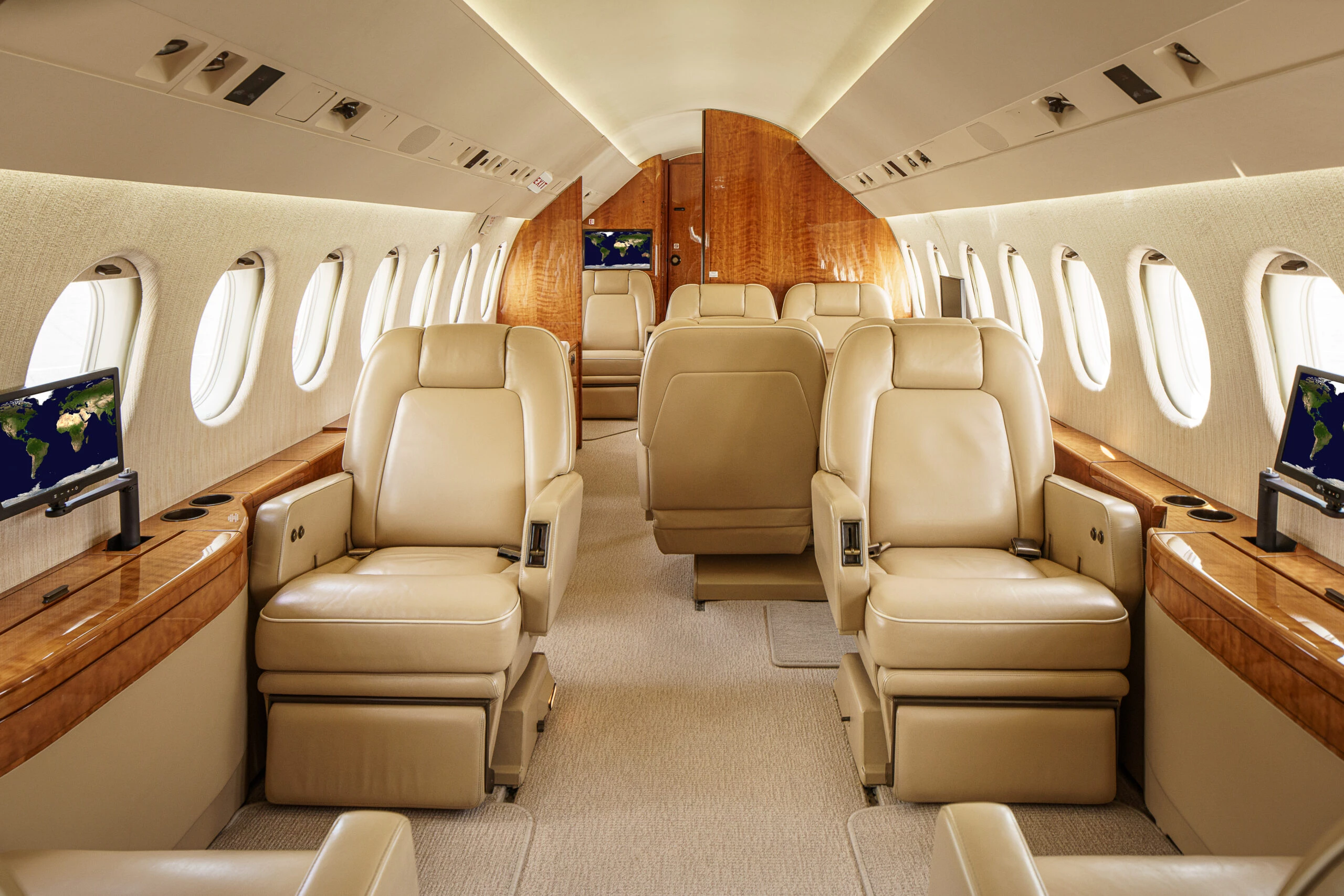

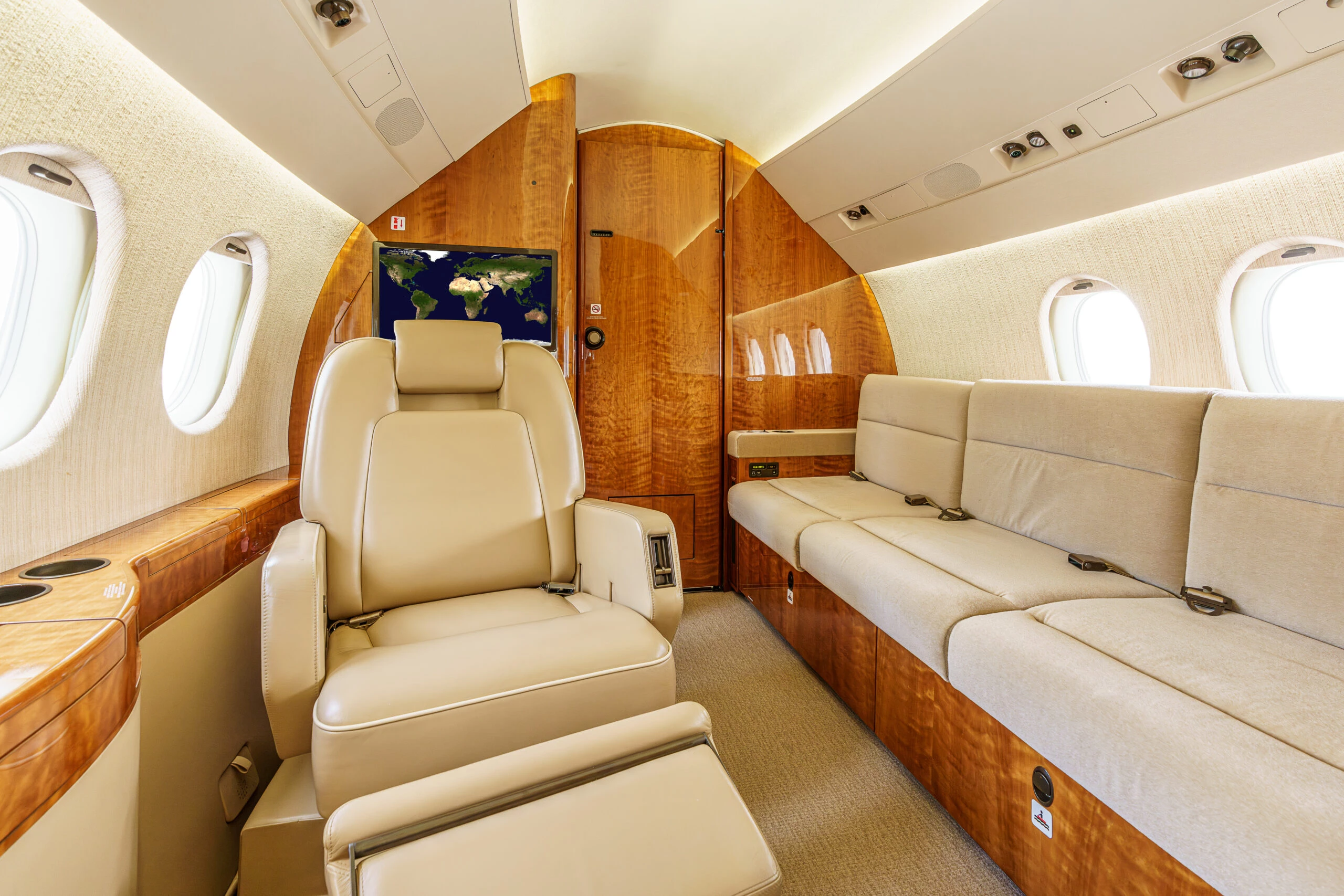

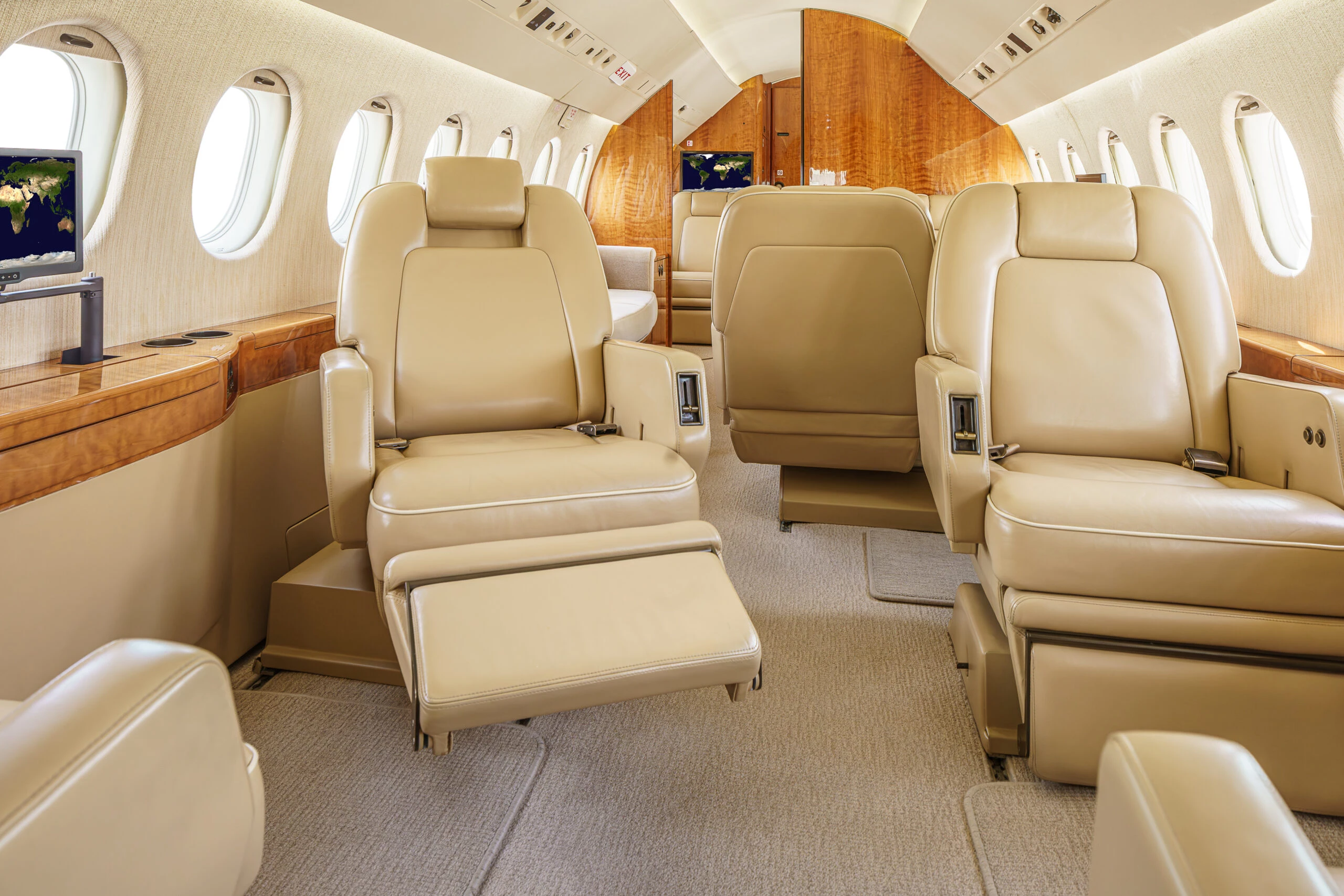

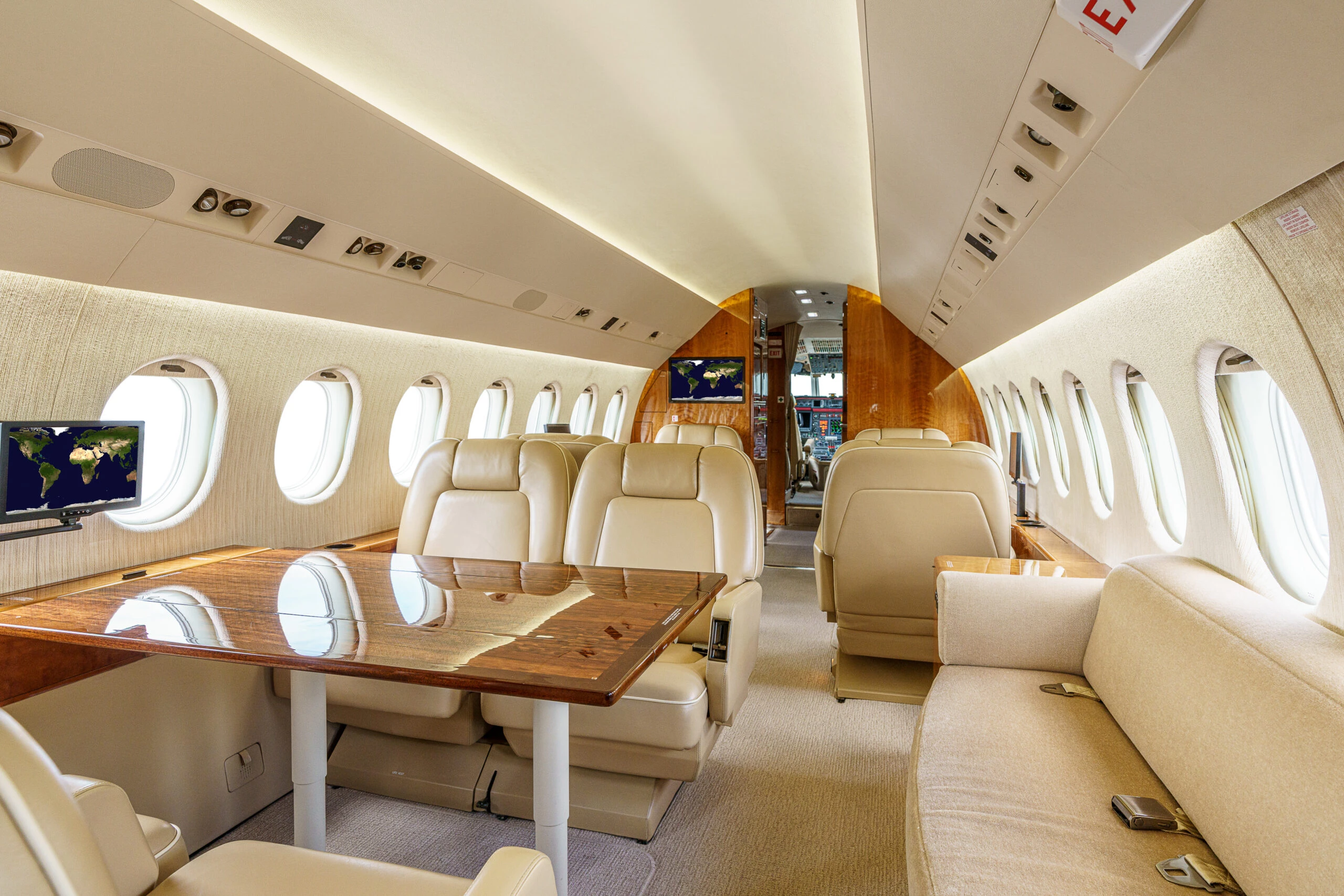

Twelve (12) passenger fireblocked interior with a forward, four-place club grouping with two pull-out tables; a left-hand, mid-cabin, four-place conference grouping opposite a settee (not certified for occupancy during takeoff and landing) with dual end cabinets; and an aft, left-hand, three-place divan (berthable) opposite a single chair with work station.

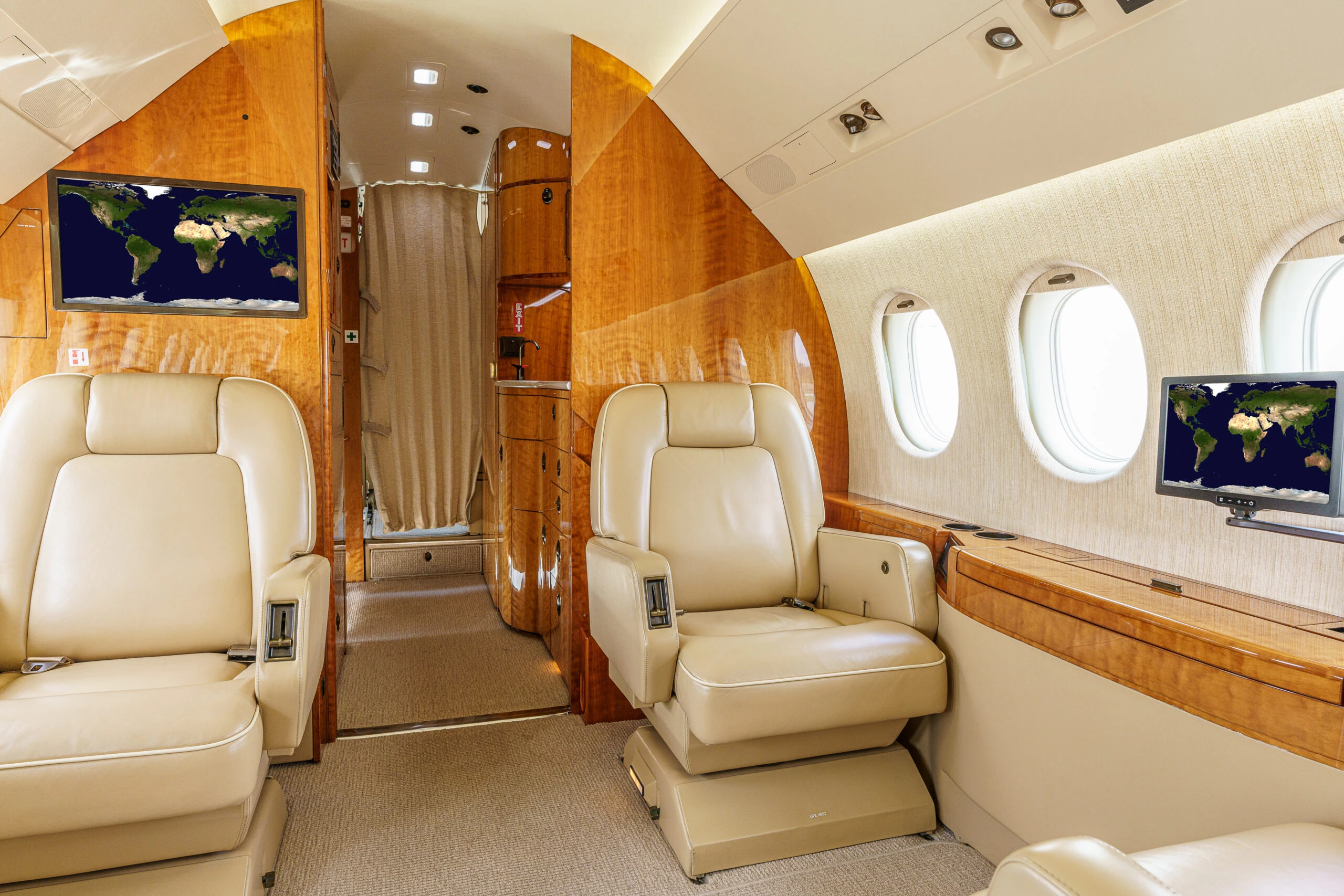

The chairs are covered with beige leather, and the settee and divan (electrically berthable) are covered with beige fabric.  Lower sidewalls are covered with beige ultra-leather; the headliner and PSU panels are off-white ultra-suede; window reveals, shades and upper sidewalls are covered with white and beige textured fabric.  The carpet is beige wool (installed May 2019); woodwork on the bulkheads, cabinets and drink rails is medium- light “fig” cherry with a high gloss finish; and all tables are dark “fig” tiger wood.  The metal hardware is antique brass with a satin finish.  A forward pocket door separates the galley from the cabin.  A solid bulkhead with an electrically activated curtain separates the mid and aft cabins.

The entertainment center, which is stored in the LH galley annex, includes a Rosen dual disc Blu-Ray player, Honeywell Jetmap II w/ Passenger Briefer and two (2) Rosen 22” High Definition Widescreen LCD cabin monitors (one flush-mounted in the forward, left-hand bulkhead, and the other flush-mounted in the aft, right-hand bulkhead) with an IR remote.  There are also three (3) 12” Rosen High Definition widescreen plug-in monitors, with receptacles located at each of the seat groups. Three (3) Honeywell PCU-200C touchscreen controllers are installed (1 in galley and 2 in the forward cabin). An HDMI/RCA auxiliary input panel is located at the aft cabin workstation. PC Ethernet plugs are located throughout the cabin. Honeywell C-Series Cabin Management System Refresh completed in December 2013 by Dassault Wilmington.

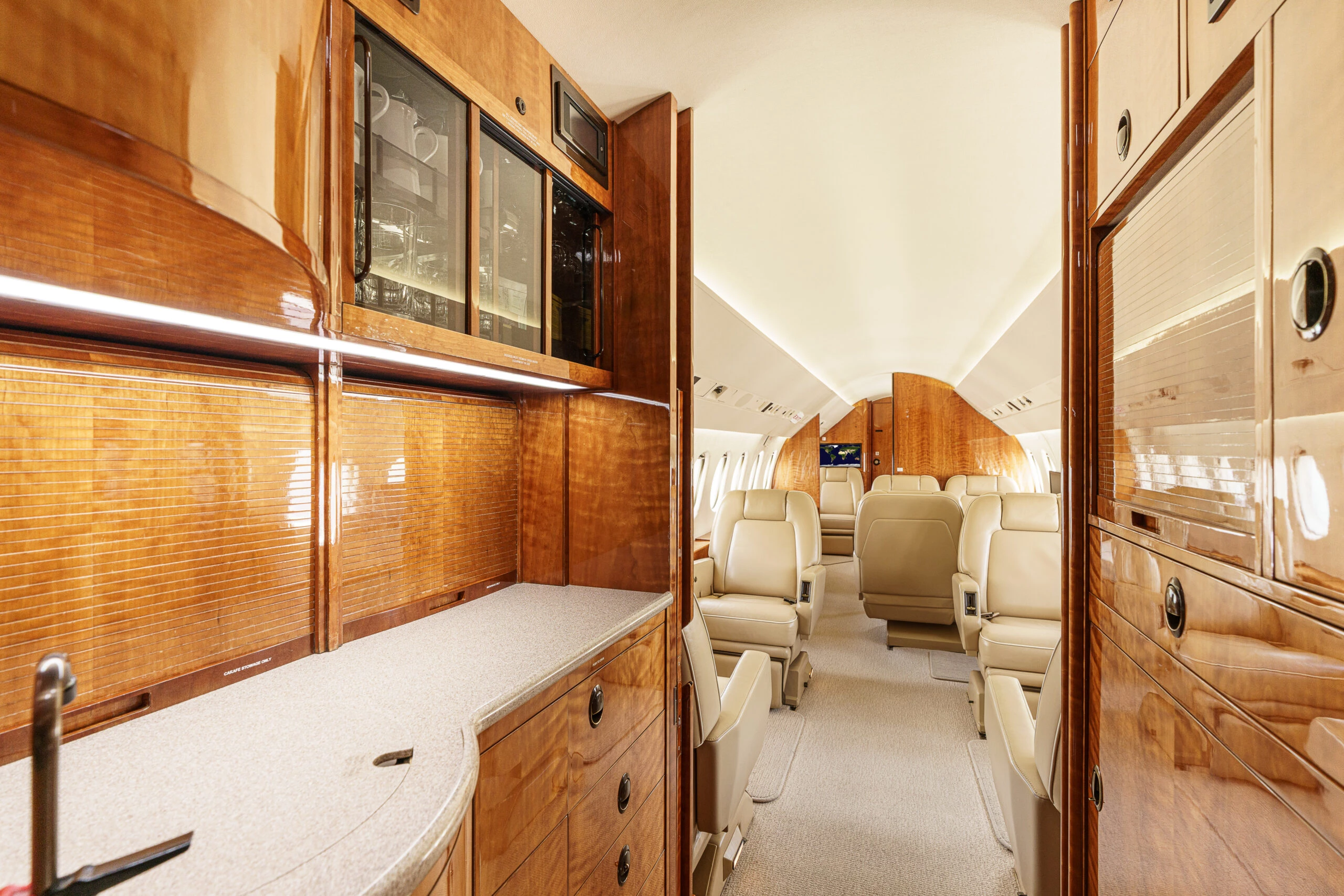

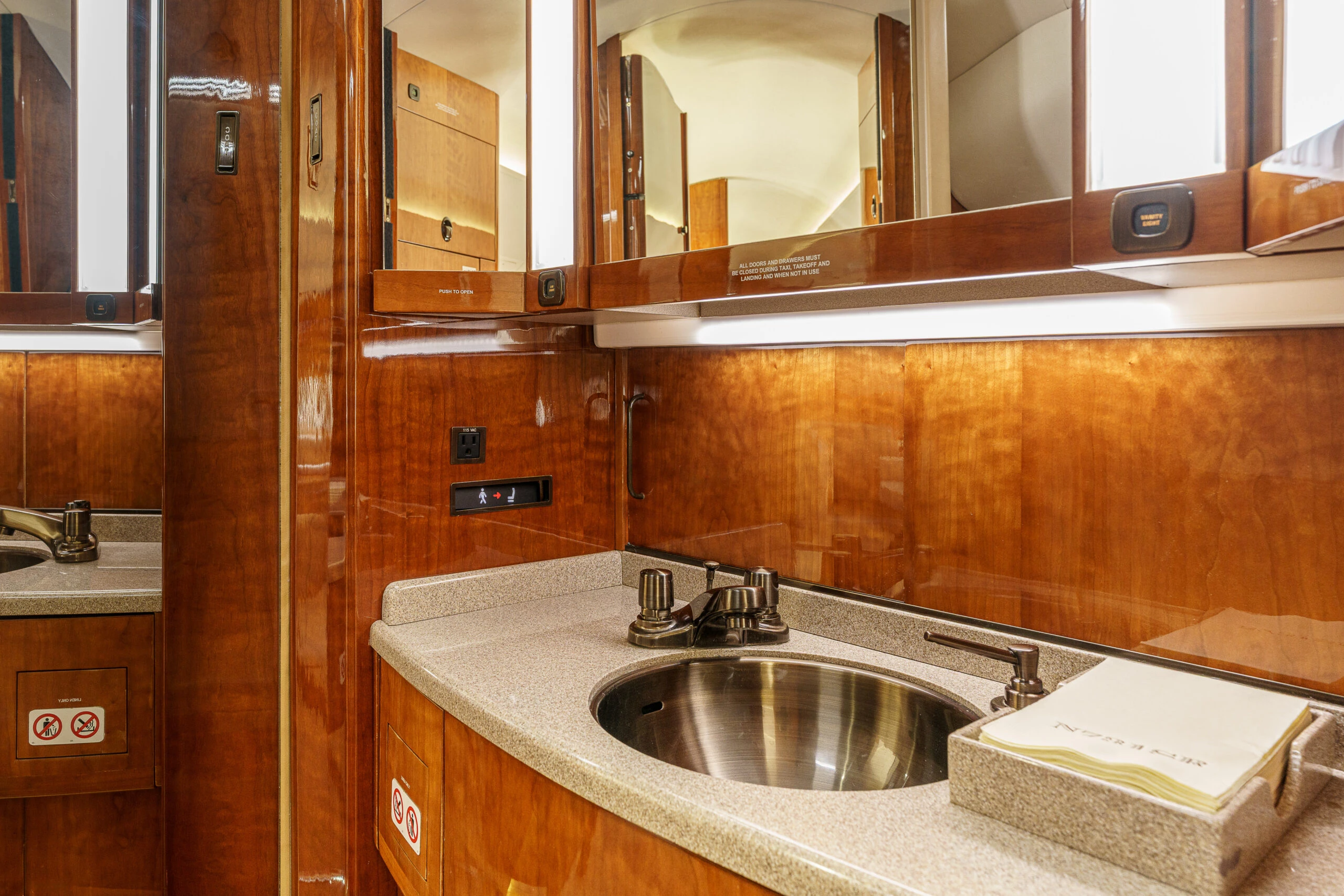

A 36” right-hand, forward galley houses a TIA WaveJet microwave oven and coffee maker.  A 23” left-hand, forward galley annex houses a TIA convection oven and a gasper-cooled storage cabinet.  Aft passenger lavatory with opposing vanity, and right-hand crew lavatory forward of the galley.  A large side-facing ERDA jumpseat is located just aft of the co-pilot seat.  Interior refurbishment completed December 2013 by Dassault Wilmington.

Strip & New Paint Currently in Progress at StandardAero – Springfield

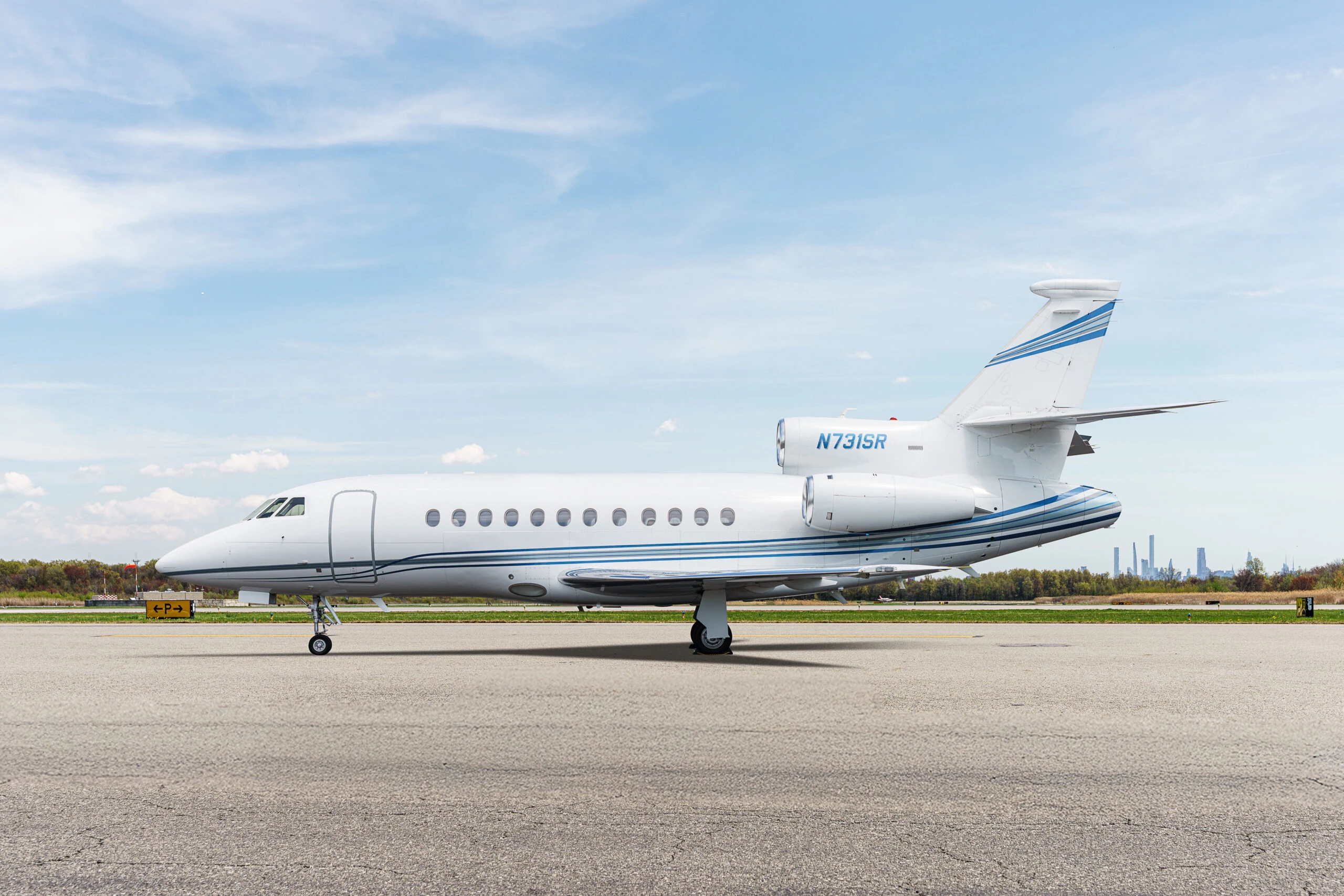

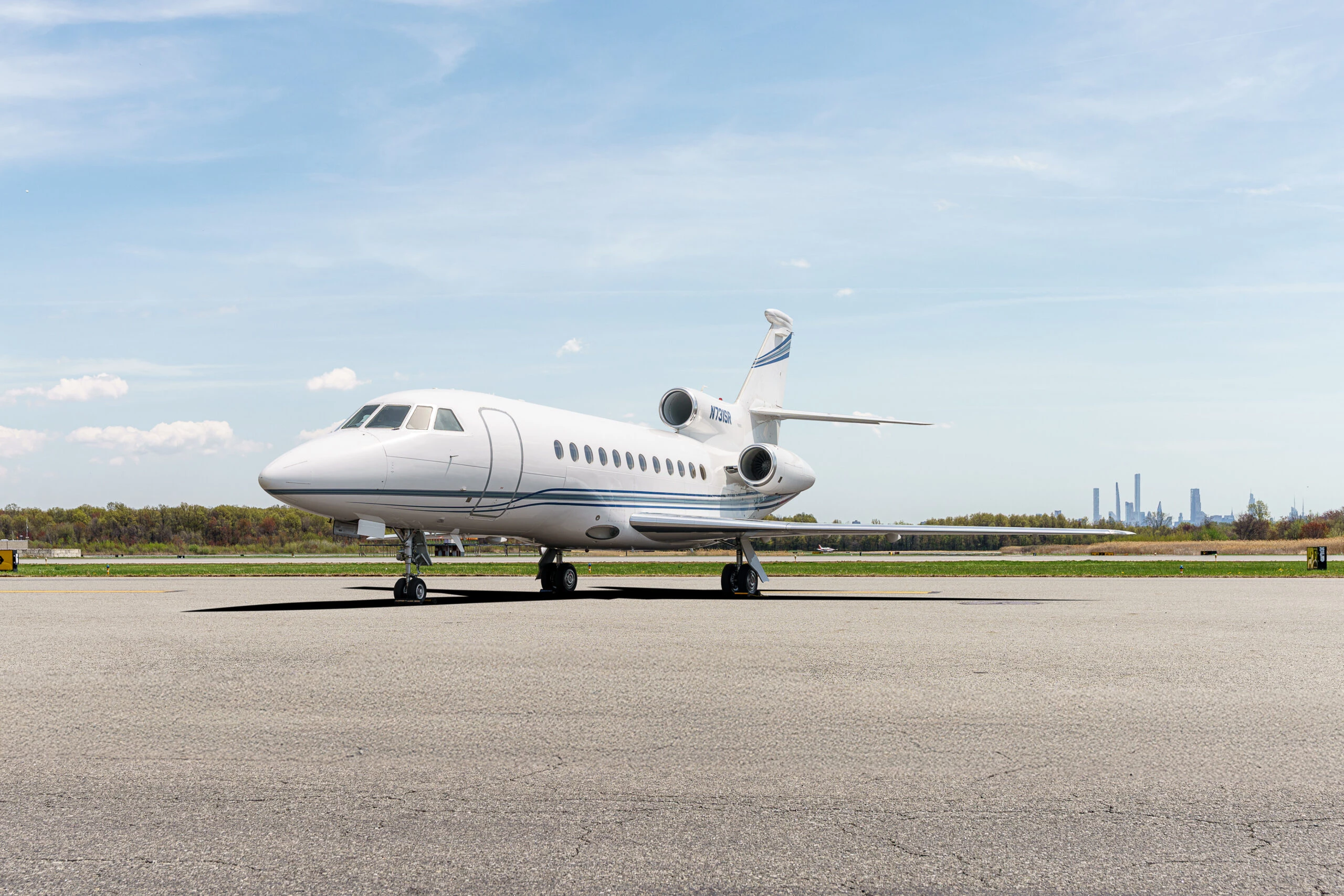

Overall Matterhorn White (No Stripes).

Engines Enrolled on MSP Gold
APU Enrolled on MSP Gold
Airframe Enrolled on MSP Avionics (HAAP) & Collins Avionics Service Plan (CASP)
Maintenance Tracked by CAMP Systems
Currently Operated Part 135

WEIGHTS:

Maximum Ramp 49,200 Lbs.
Maximum Gross Takeoff 49,000 Lbs.
Maximum Landing 44,500 Lbs.
Maximum Zero Fuel 30,864 Lbs.
Basic Empty Weight 25,745 Lbs.
Basic Operating Weight 26,690 Lbs.
Useful Load 22,510 Lbs.
Usable Fuel Capacity 20,944 Lbs.
Maximum Payload 4,174 Lbs.

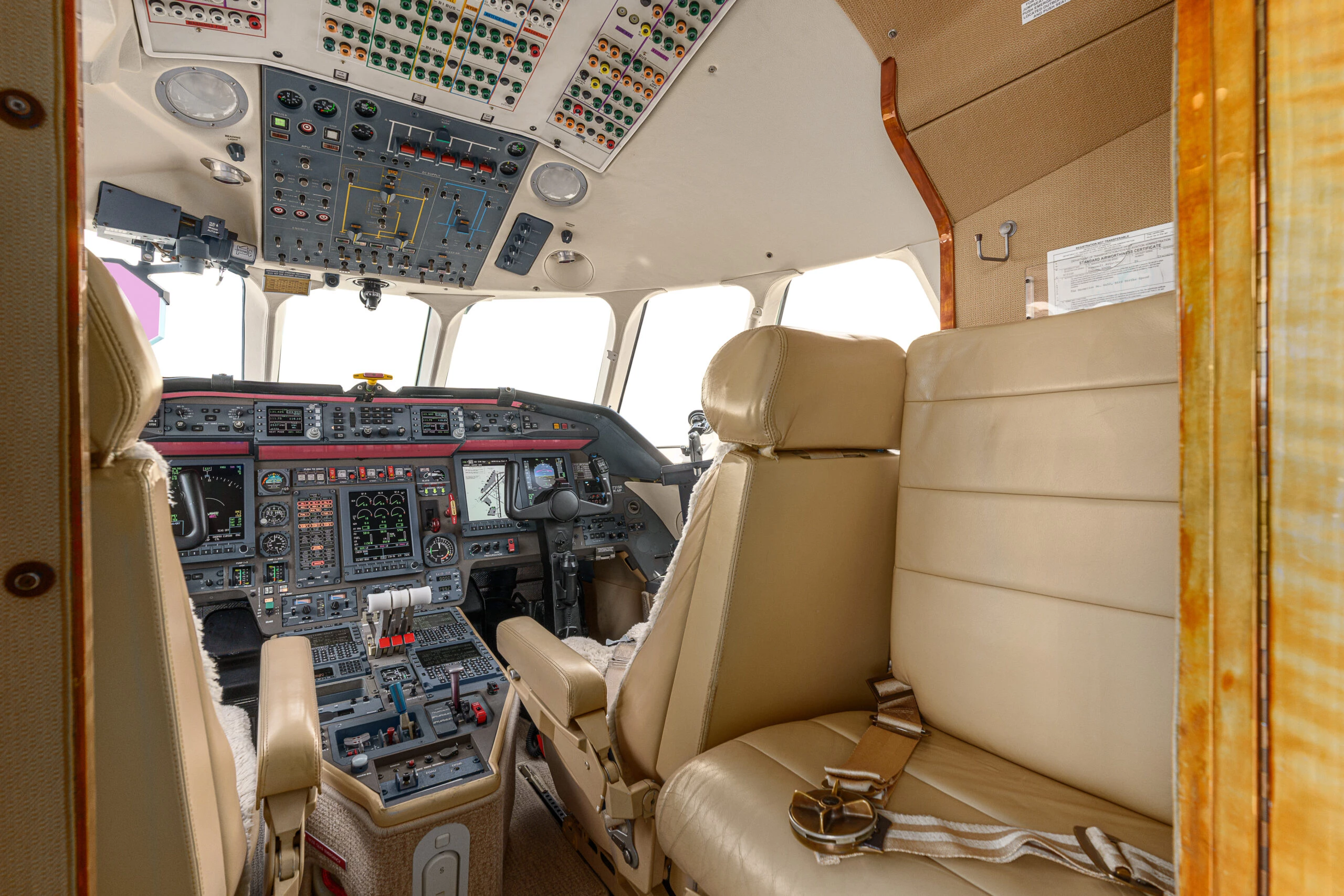

Collins Flight Dynamis HGS-2850 (HUD) Capable of CAT II/IIIA Approaches
Honeywell Elite II Upgrade with:
FMS 6.1.1
WAAS/LPV
RNP-1/2/4/5/10
HLA Compliant DU-875 Displays w/ Jepp Charts & XM Weather
Dual Electronic Checklists
GoGo ATG-5000 High Speed Internet
Honeywell MCS-7120 Satcom w/ SwiftBroadband
Honeywell MK-III CMU (CPDLC-FANS 1/A+)
SatcomDirect SDR Gateway Router/PBX
Collins TTR-4000 (TCAS II Change 7.1)
Honeywell Mark V EGPWS w/ RAAS
WX-100E Stormscope
Third Honeywell Cockpit Audio System
Dual Collins Radio Tuning Units (Digital)
Pilot/Copilot Dual USB Power Outlets in Cockpit
EMTEQ LED Cabin Lighting
LED Navigation and Landing/Taxi Lights
High Altitude Takeoff/Landing (SB193)
Dual Visionsafe EVAS
Honeywell LW SSCVR
Honeywell AR-256 DFDR (57 Parameters) w/ Quick Access Recorder
Socata 96A SATELT
Two Winslow Life Rafts w/ ELT’s (Part 135)
Six 115V Cabin Outlets
Four Cabin Data (Ethernet) Ports
Securaplane Technologies Security System
Pulse & Logo Lights
