HUD & EVS
FANS 1/A
Ka-Band Internet
10 Passenger Configuration

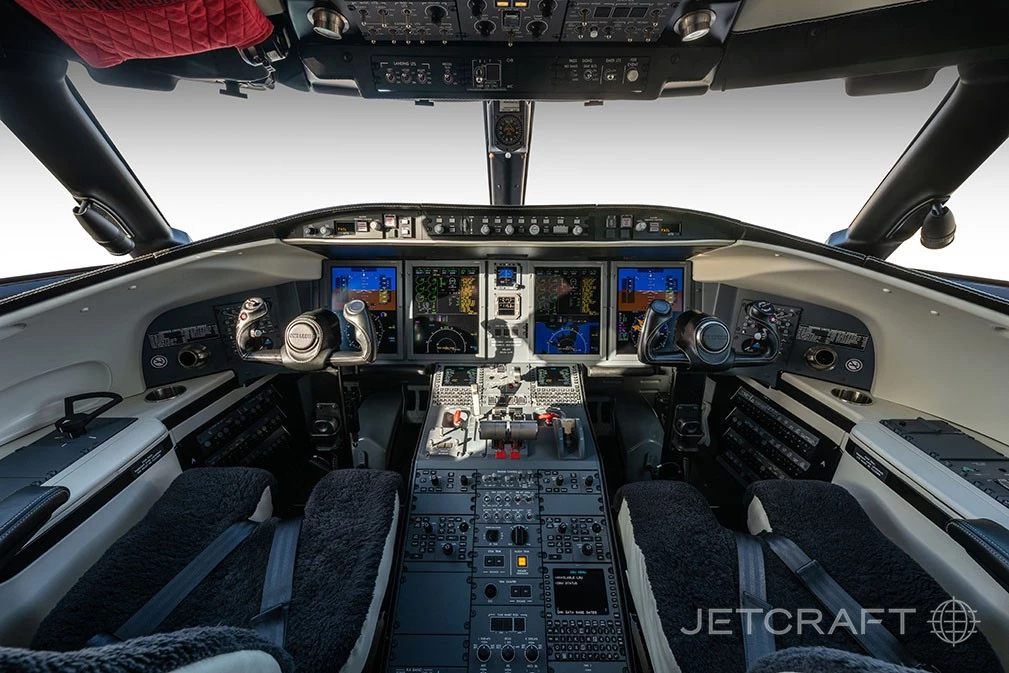

The Bombardier Challenger 650 is equipped with an integrated, Rockwell Collins Pro Line 21 Advanced avionics suite.
Type of Unit | Quantity | Unit Description |
EFIS (Electronic Flight Instrument System) | Quad | Collins AFD-5220E |
FMS (Flight Management System) | Dual | Collins FMC-6200 |
IRS (Inertial Reference System) | Dual | Honeywell |
GPS (Global Positioning System) | Dual | Collins GPS-4000S |
ADC (Air Data Computer) | Dual | Collins ADC-850E |
NAV (Navigation Radio) | Dual | Collins NAV-4000 |
HUD (Heads Up Display) | Single | Bombardier |
EVS (Enhanced Vision System) | Single | Bombardier |
SVS (Synthetic Vision System) | Single | Collins SVC-3000 |
VHF COM (Very High Freq. Communications) | Triple | Collins VHF-4000 |
HF COM (High Freq. Communications) | Dual | Collins HF-9031A |
WRADAR (Weather Radar) | Single | Collins RTA-4114 Multi-Scan |
XPNDR (Transponder) | Single | Collins TDR-94D |
TSS (Traffic Surveillance System) | Single | Collins TSS-4100 |
TAWS (Terrain Awareness Warning System) | Single | Honeywell Mark V |
CVR (Cockpit Voice Recorder) | Single | L3 Communications FA2100 |
FDR (Flight Data Recorder) | Single | L3 Communications FA2100 |
ELT (Emergency Locator Transmitter) | Single | Artex C406-N |
Number of Passengers Ten (10)

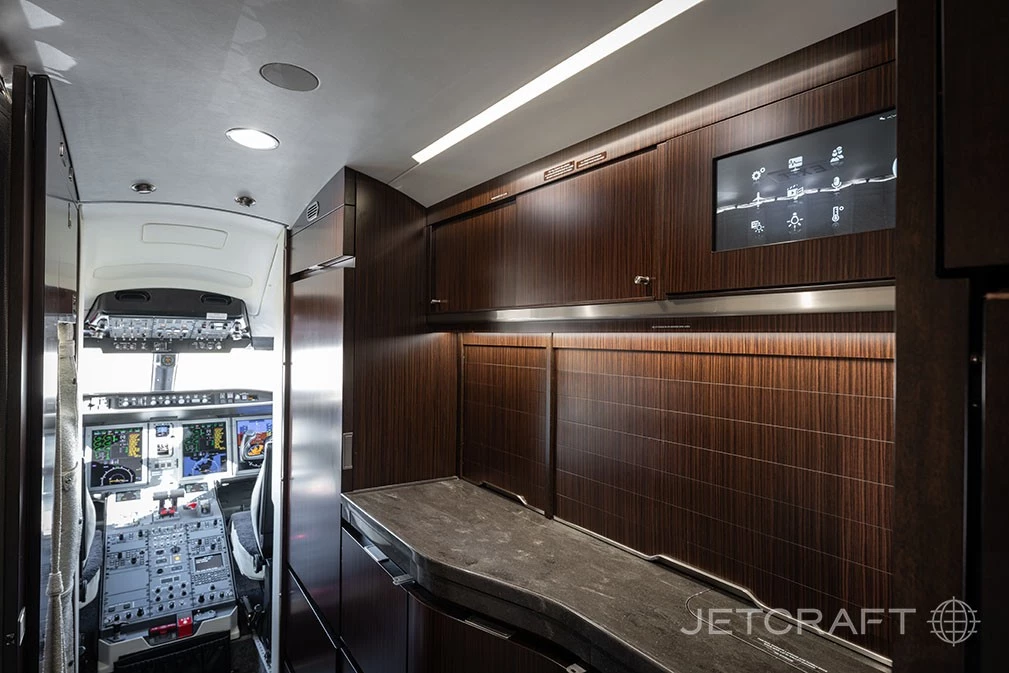

Galley Location Forward
Forward Cabin Configuration Four (4) Place Club
Aft Cabin Configuration Two (2) Place Club Opposite a Four (4) Place Divan
Lavatory Locations Aft Executive
Base Paint Color Matterhorn White
Stripes Colors Blue and Gray
MAJOR INSPECTION STATUS:
|
Inspection |
Last Performed |
Next Due |
|
24 Month |
January 2025 |
March 2027 |
|
36 Month |
February 2025 |
February 2028 |
|
48 Month |
January 2024 |
March 2027 |
|
96 Month |
- |
March 2027 |
NOTABLE UPGRADES:
SB650-34-010 – Introduction of the Runway Awareness and Advisory System
SB650-23-008 – Future Air Navigation System (FANS) Upload of Encryption Key
SB650-23-007 – Upgrade the Datalink System to Meet Link 2000+
SB650-23-002 – Installation of the Datalink System
SB650-23-001 – Installation of the 3rd VHF
STC ST02953NY - Installation of the Wireless Local Area Network
STC ST02177LA – Installation of Head-Up Display and Enhance Vision System
CONNECTIVITY:
Internet Ka-Band
